If your shower runs hot-cold-hot like a temperamental kettle, you’re not alone. Many homeowners hit that point where a home shower mixer replacement moves from “someday” to “let’s fix it this weekend.” The tricky part? Lots of modern bathrooms use a wall mounted concealed shower mixer. The valve hides behind tile in a protected box, so you need a plan before you start pulling trim off the wall. This guide walks through how to decide between a simple cartridge swap and a full hot cold shower mixer replacement, what specs to verify, and a practical step-by-step that respects real job-site constraints.
What this guide covers (and what it doesn’t)
- When a cartridge swap is enough—and when you really do need to replace the whole concealed body
- The specs you must match: connection standards, depth, outlets, and trims
- First-fix vs. second-fix tasks for a clean, level outcome
- Simple tips for commissioning so temperature stays steady after you close up the wall
It’s a nuts-and-bolts walkthrough. No fluff, just the decisions and steps that save callbacks.
Can you replace just the cartridge—or the whole mixer?
A lot of home shower mixer replacement jobs are actually cartridge jobs in disguise. Here’s a quick diagnostic.
Symptom → Likely cause → What to do
| Symptom | Likely Cause | Action |
|---|---|---|
| Drip that won’t quit | Worn cartridge seals | Replace the cartridge and O-rings |
| Temperature “yo-yo” | Pressure swings / failed thermostat element | Test pressure; replace thermostatic cartridge |
| Diverter slips / stuck | Worn diverter parts, scale buildup | Clean/replace diverter module |
| Water marks behind trim | Mis-sealed trim or blocked weep path | Reseat gasket; don’t seal the drain path |
| Trim can’t sit flush | Box set too deep/shallow | Re-set body or use correct adjustment range |
| Corroded body / damaged box | Moisture ingress over time | Full hot cold shower mixer replacement with a new concealed box |
If the body is sound and the trim’s in good shape, a cartridge saves time and tile. But if the concealed box is wrong-depth or corroded—or you’re switching from single-outlet to two-function—plan for a full replacement.
Specs you must match before buying parts
A successful wall mounted concealed shower mixer job starts with good paperwork. Five things to confirm:
- Connection standard: Is your piping ½” BSP or NPT? Match threads or use the correct adapters.
- Setback / depth window: Add up backer board + waterproofing + tile. Your concealed box needs enough adjustment to land the trim plate flush—no proud edges, no sink-in shadows.
- Outlet count: Single outlet or two-function (e.g., overhead + hand shower, or shower + tub spout).
- Control type: Single-lever mixer or thermostatic hot-cold control. If the family hates temperature swings, thermostatic is the calm choice.
- Finish and trim: Chrome, brushed, or matte black—keep the collection consistent across the room.
- Pro note: snap a photo of the wall open—studs, centerline, valve height, and box position. Six months later, that photo is gold.These checks prevent ordering the wrong wall mounted concealed shower mixer.
Tools and materials checklist
- Adjustable wrench, hex keys, torque screwdriver, level, tape
- PTFE tape, replacement O-rings, food-grade silicone grease
- Pressure gauge or test kit for static/dynamic readings
- Microfiber cloth, mild cleaner, painter’s tape
- Safety gear: gloves and eye protection
First-fix: replace or install the concealed valve and box
Positioning and leveling
- Strike the centerline and heights for outlets (overhead, hand shower, tub spout).
- Set the box within its depth window. Leave a couple of millimeters of “forgiveness” so the trim sits flush after tile.
- Level and plumb the body. Small misalignments show up big on a flat trim plate.
Pipework and isolation
- Confirm hot left / cold right and the mixed outlet direction.
- Keep unions accessible. Use the right thread treatment (BSP vs. NPT).
- Leave the weep path clear; that’s how condensation and small leaks escape without hiding behind the plate.
Flush and pressure test
- Flush the lines before you install a new cartridge—grit kills seals.
- Record static pressure and dynamic draw. If the house has wild swings, a thermostatic route will pay for itself in calmer mornings.
Waterproofing and wall build-up
- Waterproof the shower zone to full height where possible.
- Seal only where the manufacturer specifies. Over-sealing the box can trap moisture.
- Flat is king. If the substrate isn’t true, the plate won’t sit right. Fix it now; future-you will thank present-you.
Second-fix: trim, outlets, and finishing touches
Trim install
- Fit the plate, lever(s), and diverter. If you’re using an anti-scald stop, set it now—38–40 °C is a comfortable point for most households.
- Cycle the controls. You should feel clean detents on a two-function diverter and smooth resistance on the lever.
Outlet connections
- Tie in overhead and hand shower (or tub spout). Leave service slack where flexible hose is used.
- Seal with gaskets first, not buckets of silicone. Sealant is for edges, not for replacing the right washer.
Commissioning: balance, calibrate, document
- Thermostatic calibration: Get the hot feed truly hot, then set your comfort stop.
- Open other taps in the house while testing. Watch for swings and note final settings.
- Hand the homeowner a short one-pager: model, cartridge part number, and a simple cleaning routine.
Replacement-only path (cartridge/trim) in short
If you confirmed the body and box are fine:
- Shut the water off; open the mixer to bleed pressure.
- Remove trim and pull the cartridge or diverter module.
- Clean the chamber, lightly grease O-rings, and re-install.
- Refit trim, test for temperature stability, and re-seat the plate.
If the trim still cannot fit completely or continues to leak, it indicates that you need to plan to replace the shower mixing valves throughout your home.
Common mistakes—and how to avoid them
- Box too deep/too shallow: Know your wall stack. Dry-fit the plate before tiling.
- Sealing the weep path: Don’t. Let condensation out.
- Skipping the flush: Tiny debris → scratched ceramic → early drip.
- Ignoring pressure balance: If your house is all over the map, consider thermostatic control. It’s not “fancy”—it’s practical.
Two-function concealed example: a neat fit for real bathrooms

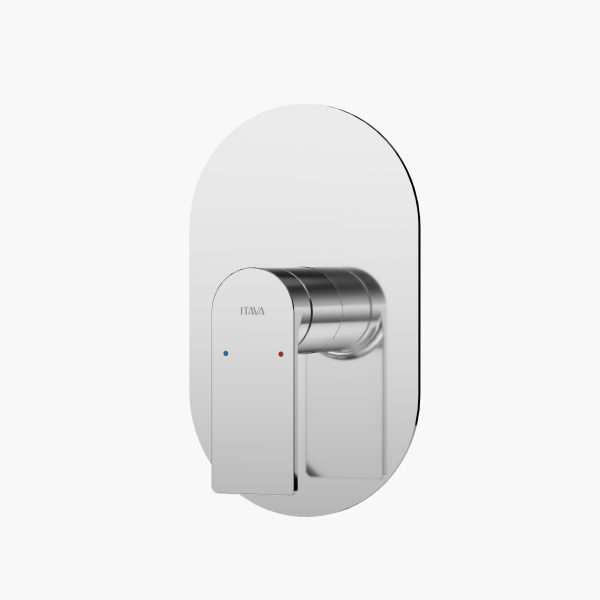

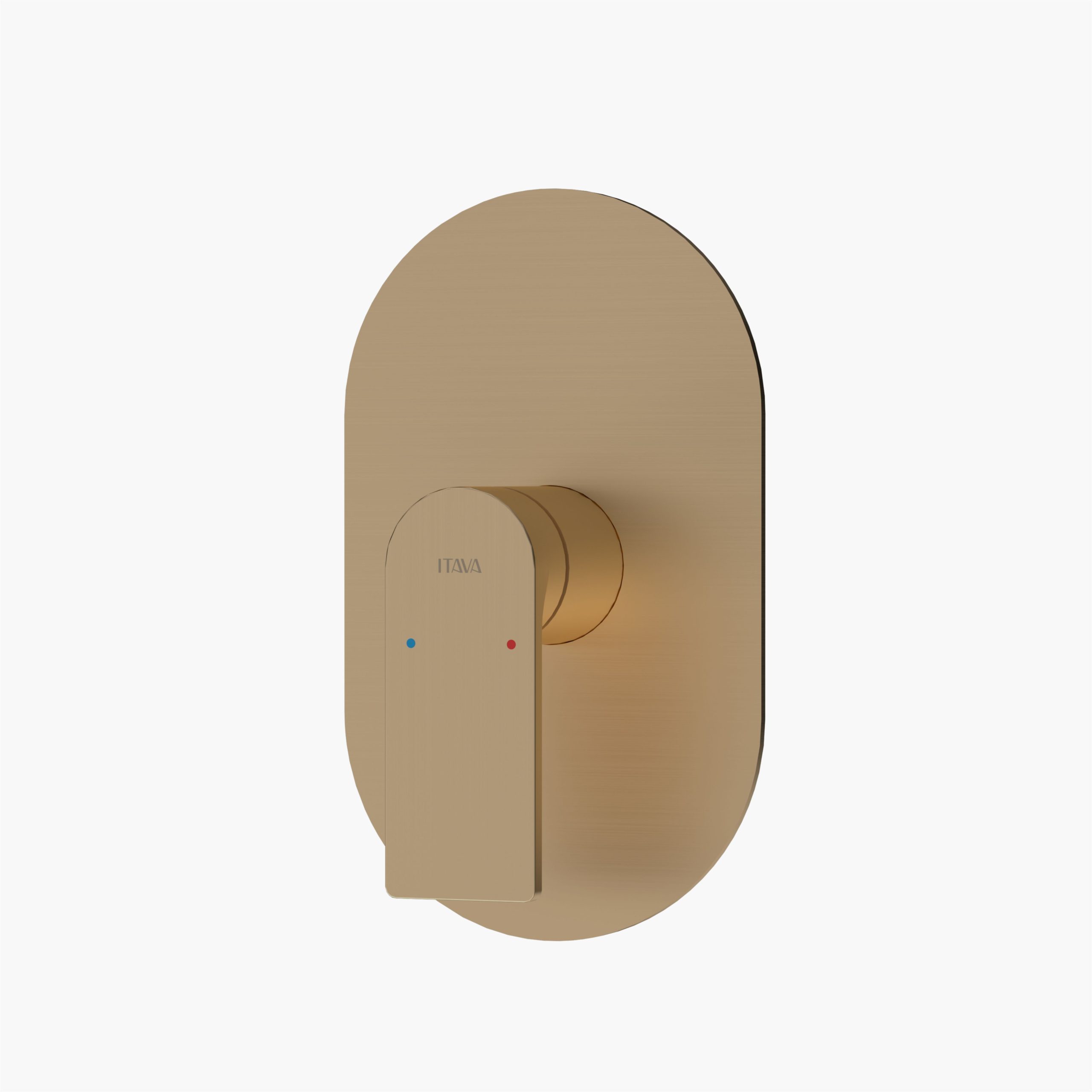

Working on a compact bath that still needs two outlets? A two-function, wall mounted concealed shower mixer with a front-service trim can keep things simple: one lever for mix, a diverter for outlets, and a tidy plate that sits flat on the tile. The concealed box gives you that minimalist wall you want, while the front-service design means future seal swaps or cartridge replacements don’t involve a chisel. This is the sweet spot for many remodels: modern face, practical bones.
Where kitchen faucet thinking helps your shower choice
If you have ever picked a kitchen faucet that is durable and remains smooth even after years of daily use, then you know what aspects to pay attention to when choosing a shower faucet: a brass body, a sturdy and durable valve core, and a surface treatment that maintains its luster even in hard water environments. The same concept is just applied to different walls.
ITAVA in brief
ITAVA is a design-driven kitchen and bathroom brand that develops complete spaces—faucets, showers, furniture, and smart products—for modern homes, boutique hotels, and upscale projects. The focus is straightforward: durable brassware, clean lines, and trims that age well in real bathrooms. If you’re planning a home shower mixer replacement or speccing a wall mounted concealed shower mixer for a new build, ITAVA’s product families make it easy to keep finishes consistent and maintenance practical.
Conclusion
You don’t replace a concealed shower valve every year, so do it right once. Confirm the box depth, check the connections, and decide honestly between a cartridge swap and a full hot cold shower mixer replacement. Set the trim square, calibrate temperature, and leave a small trail of documentation for the next tech—or for yourself months down the road. A little care here means fewer surprises later and a shower that just works, every single morning.
FAQs
Q1: How do I decide between a cartridge swap and a full home shower mixer replacement?
Start with symptoms. Constant dripping or a sticky lever usually means a new cartridge. Corrosion inside the box, wrong depth, or a move to two outlets points to a full home shower mixer replacement.
Q2: Is a hot cold shower mixer replacement possible without removing tile?
Sometimes, yes—if the valve body and box are good and you’re just swapping the cartridge and trim. If the concealed box doesn’t match your wall build-up or the body is damaged, tile work may be needed for a proper hot cold shower mixer replacement.
Q3: What should I check on a wall mounted concealed shower mixer before buying?
Verify the connection type (½” BSP/NPT), the setback/depth window, outlet count (single vs. two-function), and trim finish. Those four checks cover most surprises with a wall mounted concealed shower mixer.
Q4: Can I add a second outlet later?
Only if the body is designed for two-function use. If your current valve is single-outlet, you’ll likely need a new concealed mixer rather than a simple add-on diverter tucked behind the plate.
Q5: Any maintenance tips after installation?
Keep the finish clean with mild soap and a soft cloth. Avoid abrasive powders. Flush lines before future cartridge changes. A quick annual check—look for leaks, confirm temperature—keeps the valve feeling new.
